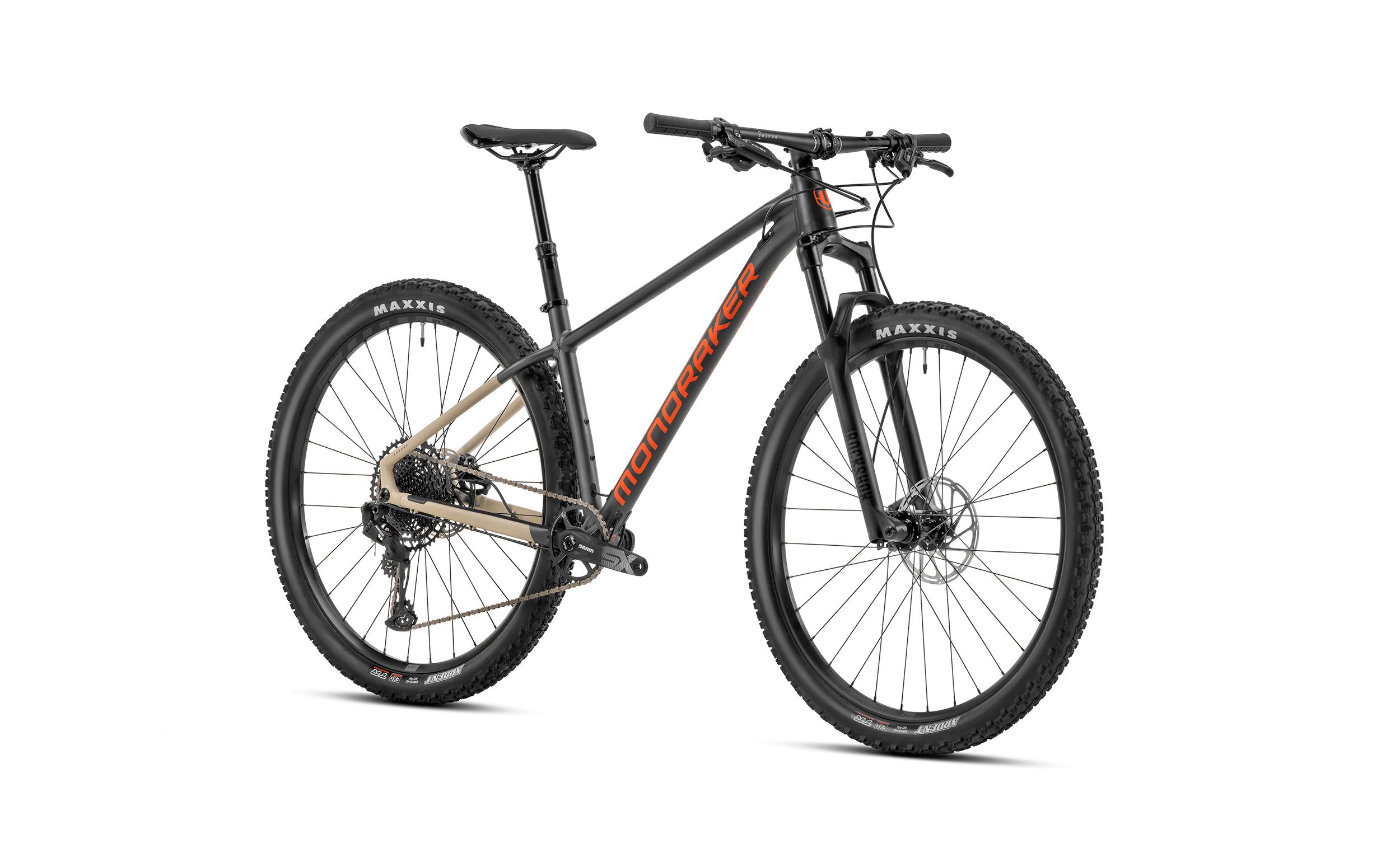

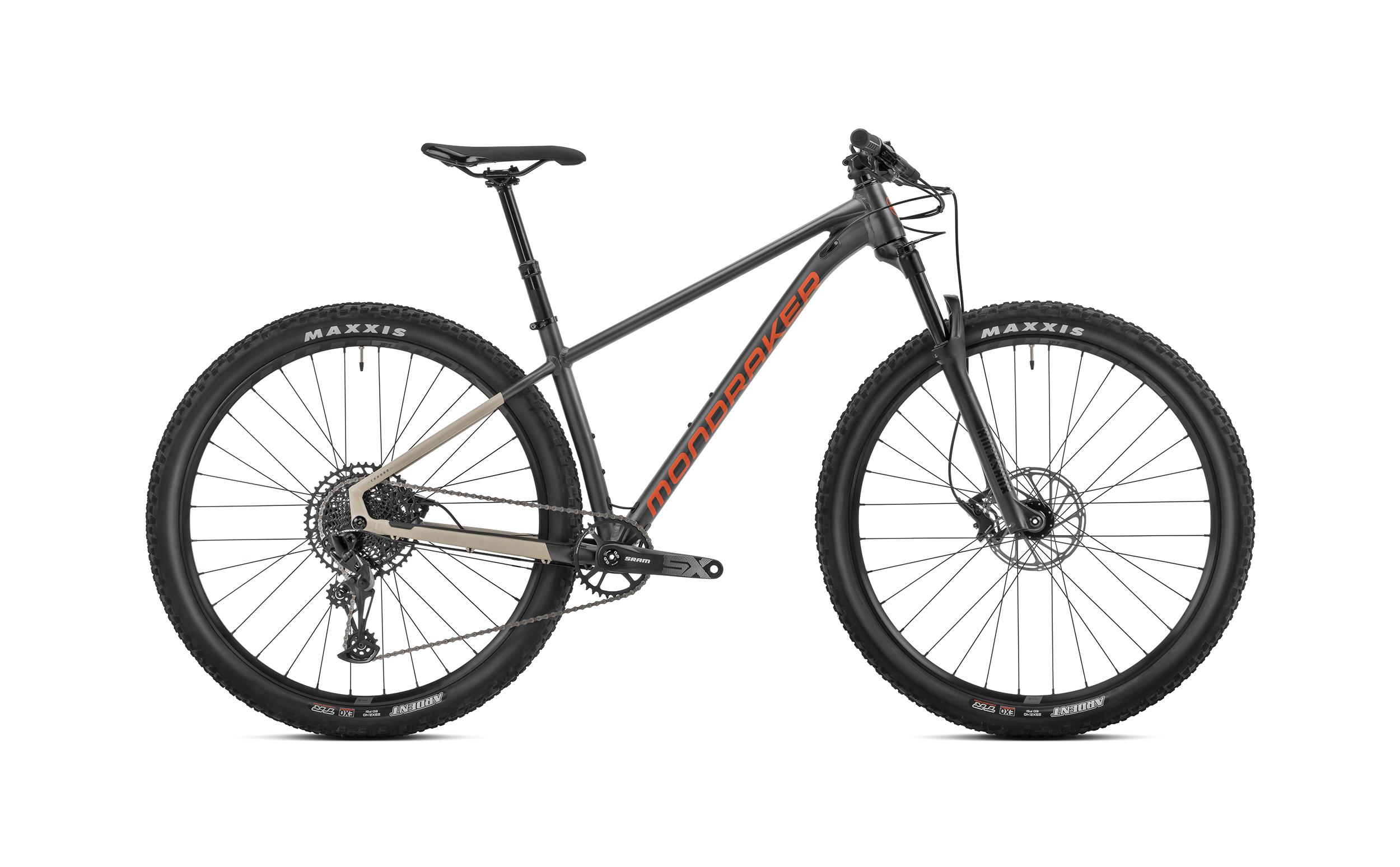

Lieferbar innerhalb 3-5 WerktageMondraker CHRONO DC GRAPHITE GREY ORANGE
| Preis UVP € | 0,000 |
|---|---|
| Titel | Mondraker CHRONO DC GRAPHITE GREY ORANGE |
| Laufradgröße | 29 Zoll |
| Rahmenform | Diamant |
| Modelljahr | 2023 |
| Hersteller | Mondraker |
| Rahmen | Chrono 29 Stealth Alloy, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle |
| Gabel | RockShox Judy Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 46mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload |
| Bremse | Sram Level T, 2 piece caliper, Centerline 180mm / 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Bremshebel | Sram Level, tooled reach adjust, lever pivot bushings |
| Schalthebel | Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Schaltwerk | Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
| Schaltauge | Mondraker M068 |
| Kurbelgarnitur | Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm |
| Kette | Sram SX Eagle, 12s, Powerlock |
| Kettenblätter | 34T, steel, X-Sync 2 |
| Kassette | Sram PG-1210, 11-50T, 12s |
| Felgen | MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Reifen vorn | Maxxis Ardent 29x2.40, 60TPI, folding bead |
| Reifen hinten | Maxxis Ardent 29x2.40, 60TPI, folding bead |
| Vorbau | Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 60mm, size L: 80mm, size XL: 90mm |
| Lenker | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Griffe | Onoff Twin, 1lock-on, 135mm |
| Sattel | Mondraker XC Series, steel rail |
| Sattelstütze | Onoff Pija dropper internal, diameter 31.6mm, S/M size: 405x95-125mm, L/XL size 458x120-150mm |
| Steuersatz | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Nabe vorn | Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
| Nabe hinten | Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts |
| Innenlager | Sram DUB BSA, sealed bearings, 73mm |
| Pedale | - |
