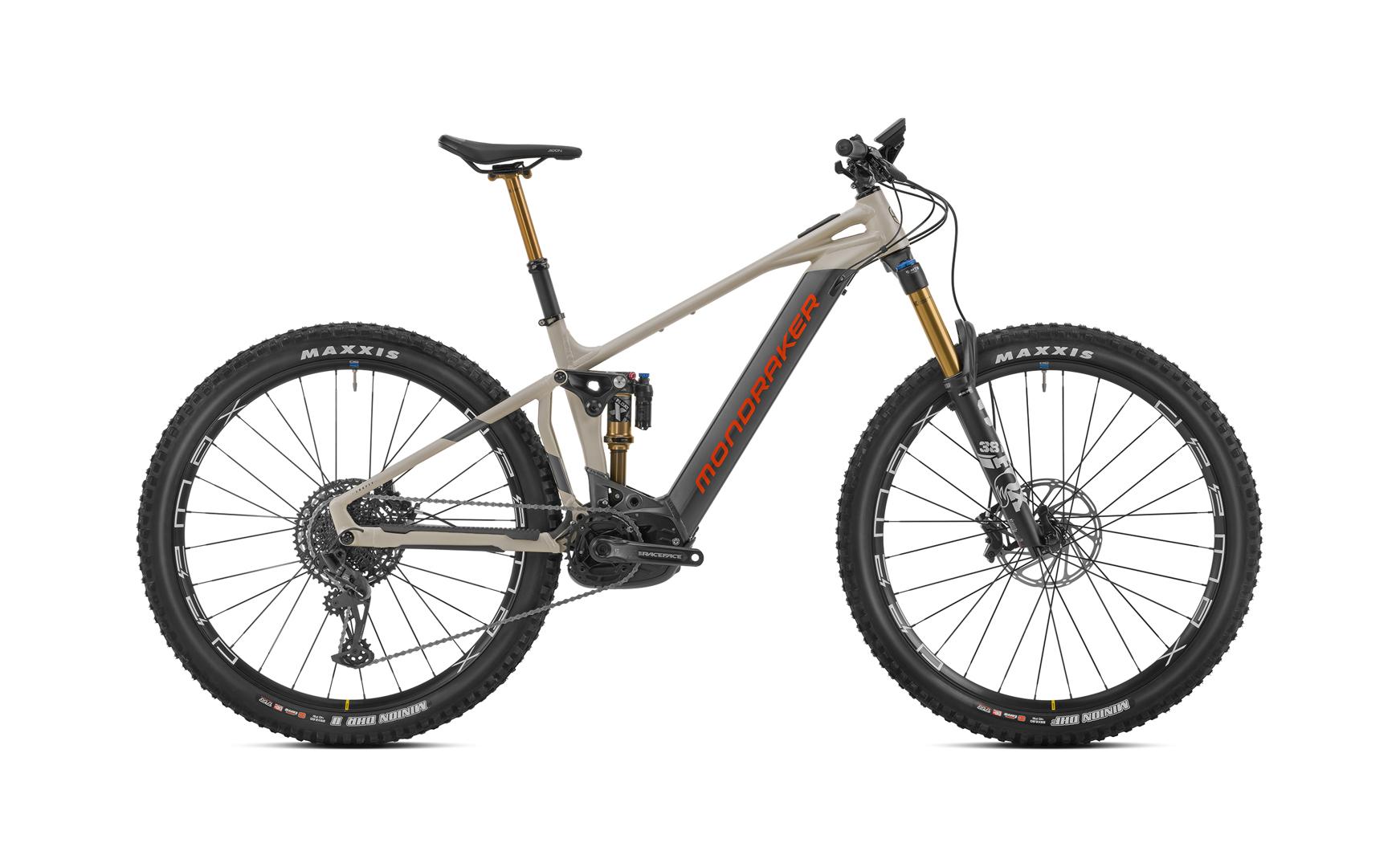

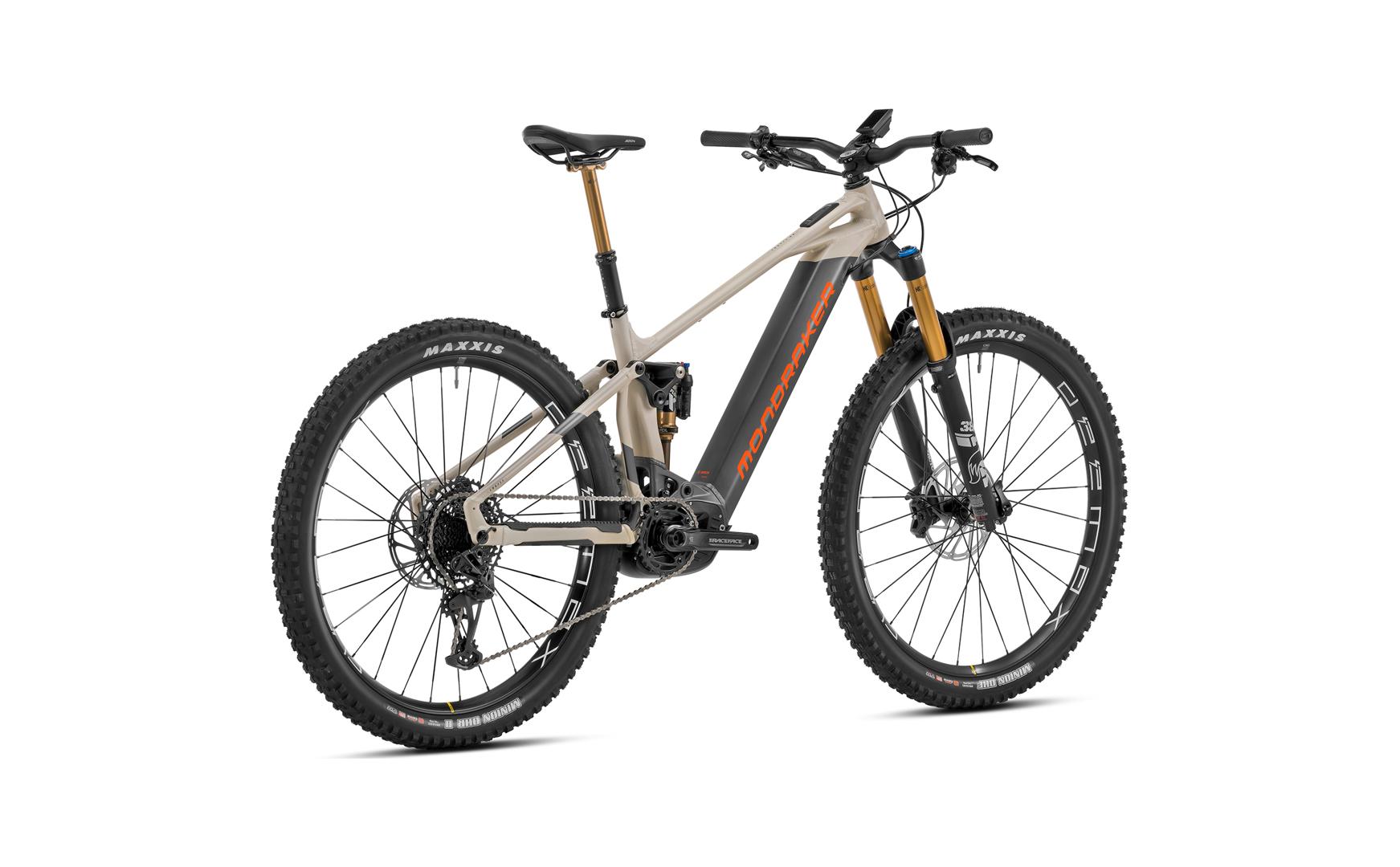

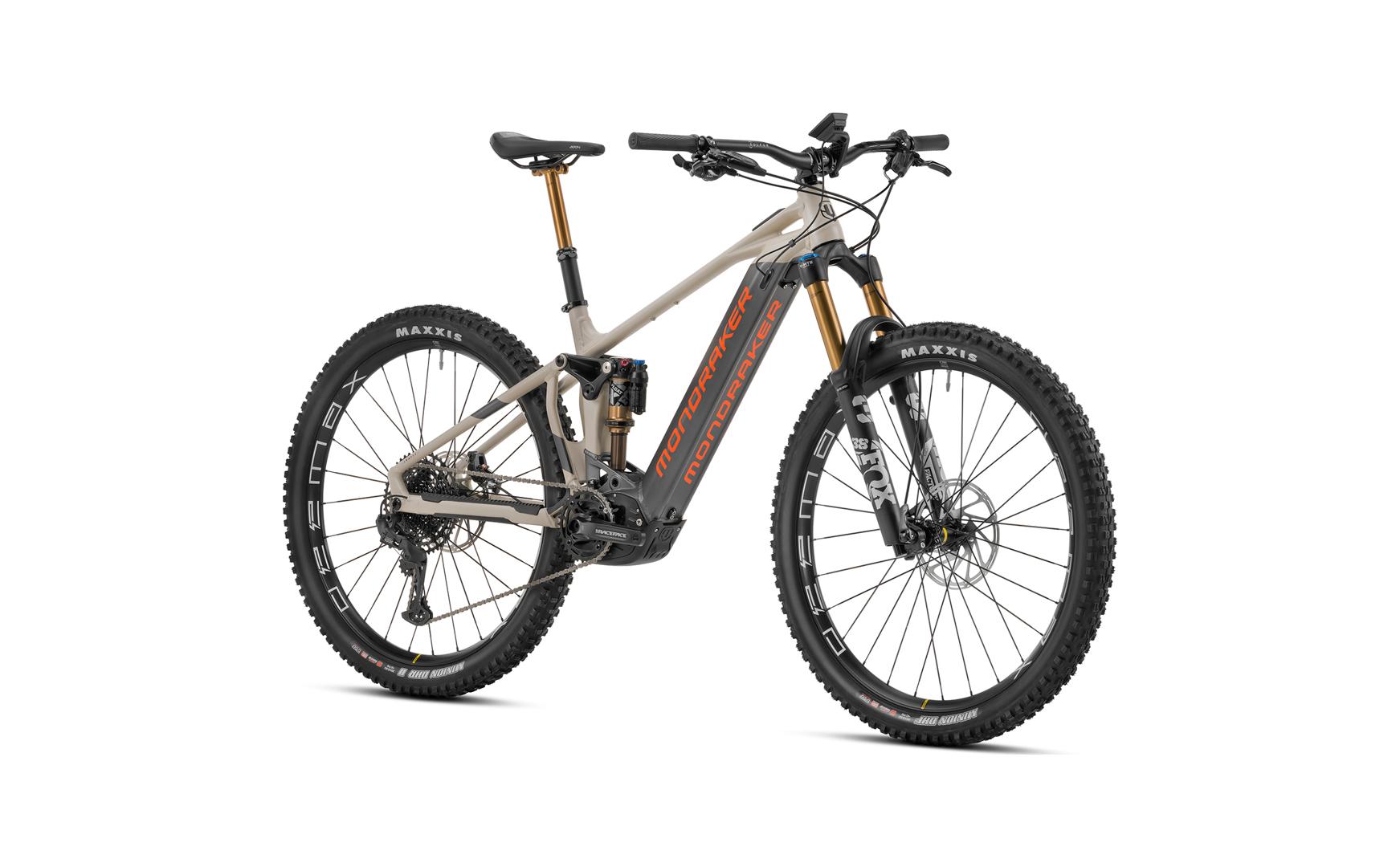

Mondraker Crafty RR Grey Graphite Orange
Dieses Bike nutzt alle Möglichkeiten seines optimierten ZERO SUSPENSION SYSTEMS und absorbiert die Vibrationen der Trails im Schlaf. Dazu kommen die FORWARD GEOMETRY und ein STEALTH ALLOY EVO Rahmen, um dir spektakuläre Agilität und den größtmöglichen Fahrspaß zu geben. Die Fox 38 Federgabel und der Fox Float X Dämpfer, beide aus der Factory-Reihe, bieten in allen Lebenslagen eine überragende Kontrolle, egal wie wild die Trails werden. Keine Frage - durch die neuesten Verbesserungen am CRAFTY RR wirst du dich fühlen wie ein Profi!Preis UVP | 7799,000 |
---|---|
Titel | Mondraker Crafty RR Grey Graphite Orange |
Laufradgröße | 29'' |
Modelljahr | 2023 |
Hersteller | Mondraker |
Motor | Bosch Performance Line CX Cruise (25Km/h) Smart System |
Akku | Bosch Powertube 750Wh |
Display | Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller |
Rahmen | Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrat |
Gabel | Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload |
Dämpfer | Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
Dämpfereinstellungen | medium compression, medium rebound, air volume spacer 0.2 |
Bremse | Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Bremshebel | Sram Code R, tool-free reach adjust |
Schalthebel | Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
Schaltwerk | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
Schaltauge | Mondraker M068 |
Kurbelgarnitur | Race Face Aeffect ebike, 165mm |
Kette | Sram NX Eagle, 12s, Powerlock |
Kettenblätter | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
Kassette | Sram XG-1230, 11-50T, 12s |
Felgen | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
Reifen vorn | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Reifen hinten | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Vorbau | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
Lenker | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Griffe | Onoff Desert, 1lock-on, 135mm |
Sattel | FIZIK Terra Aidon X5 145mm |
Sattelstütze | Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm |
Steuersatz | Onoff Saturn tapered for 1-1/8 to 1-1/2 head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
Nabe vorn | Mavic, Boost 15x110mm, IS 6 bolts |
Nabe hinten | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts |
Pedale | - |
