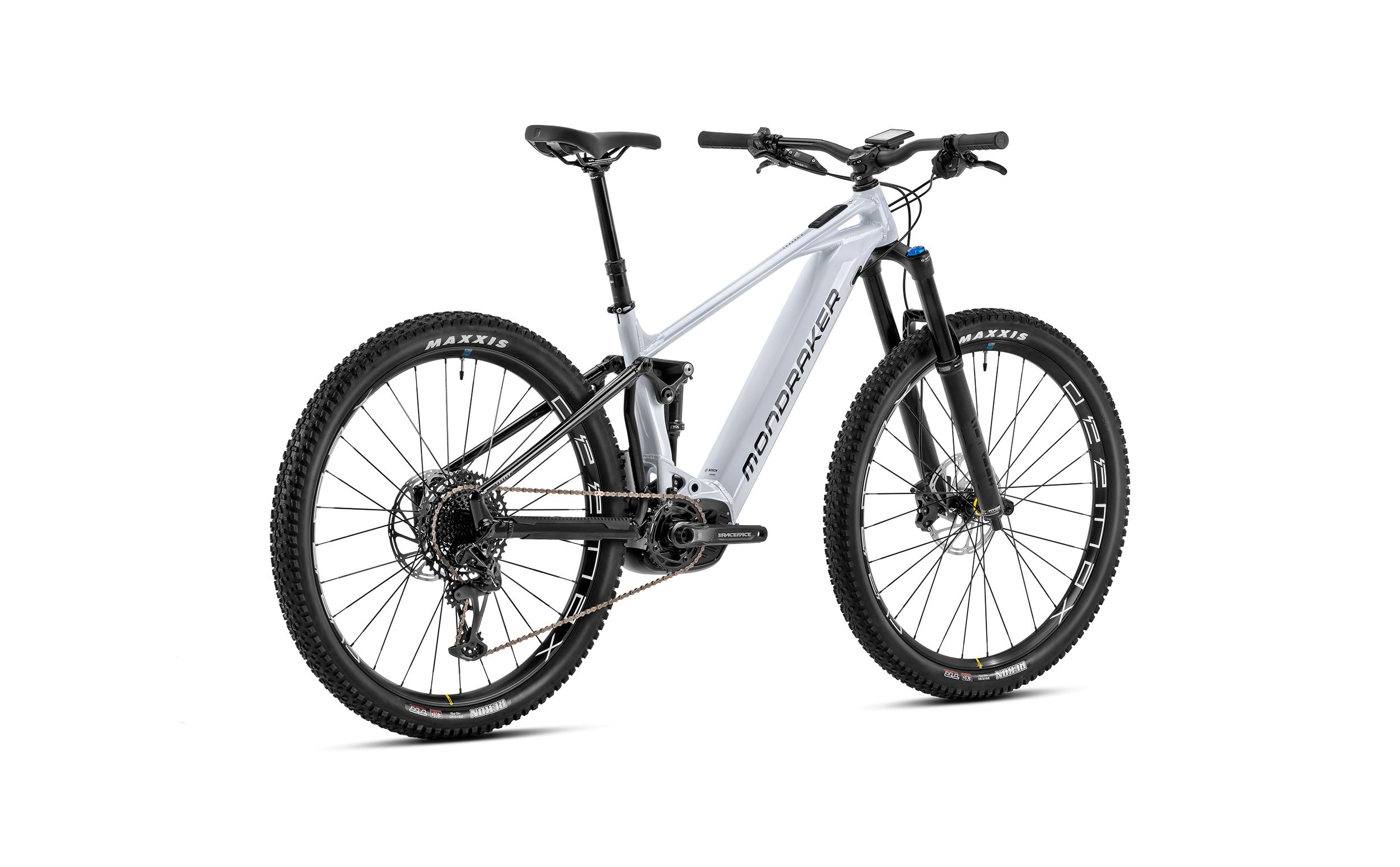

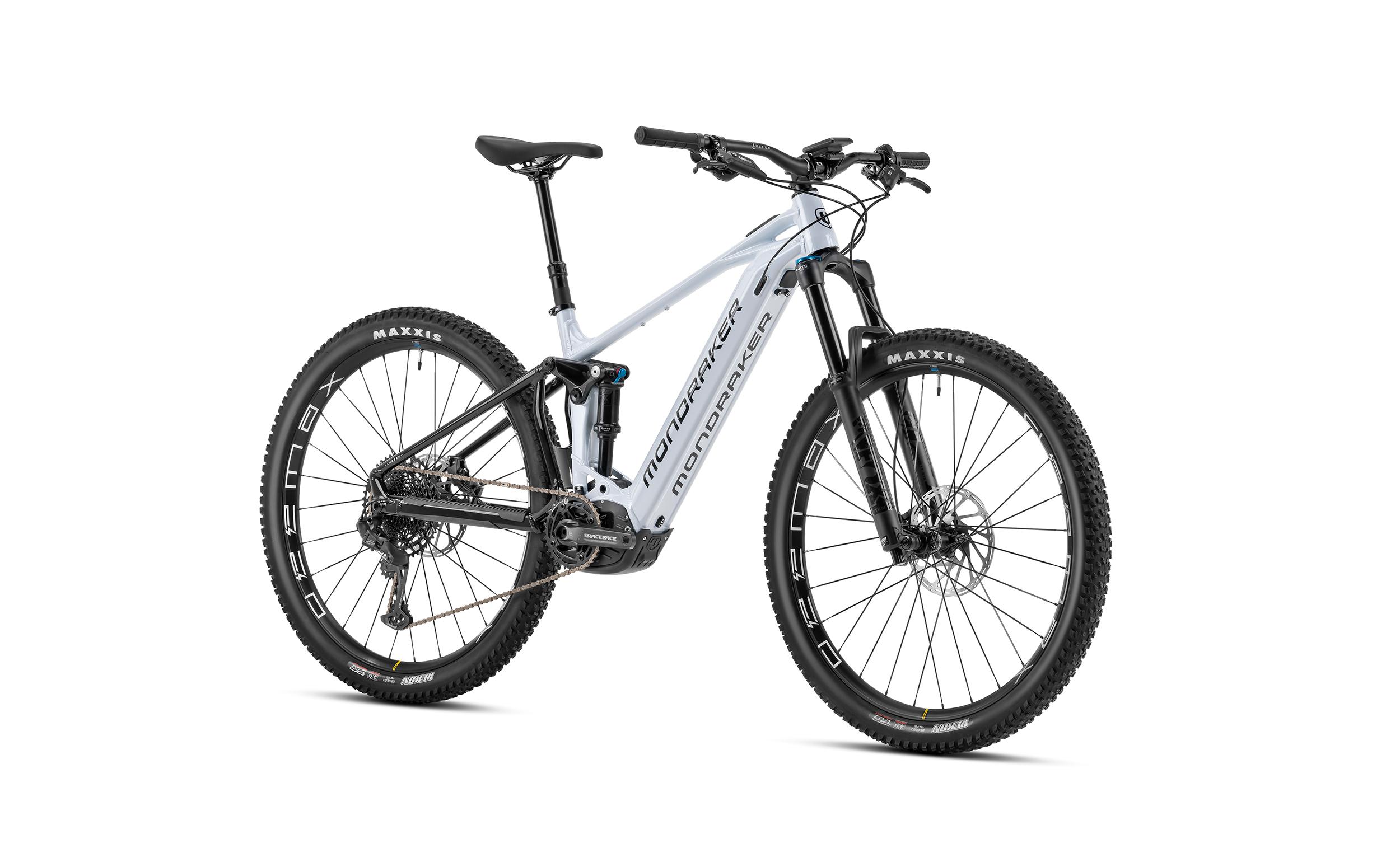

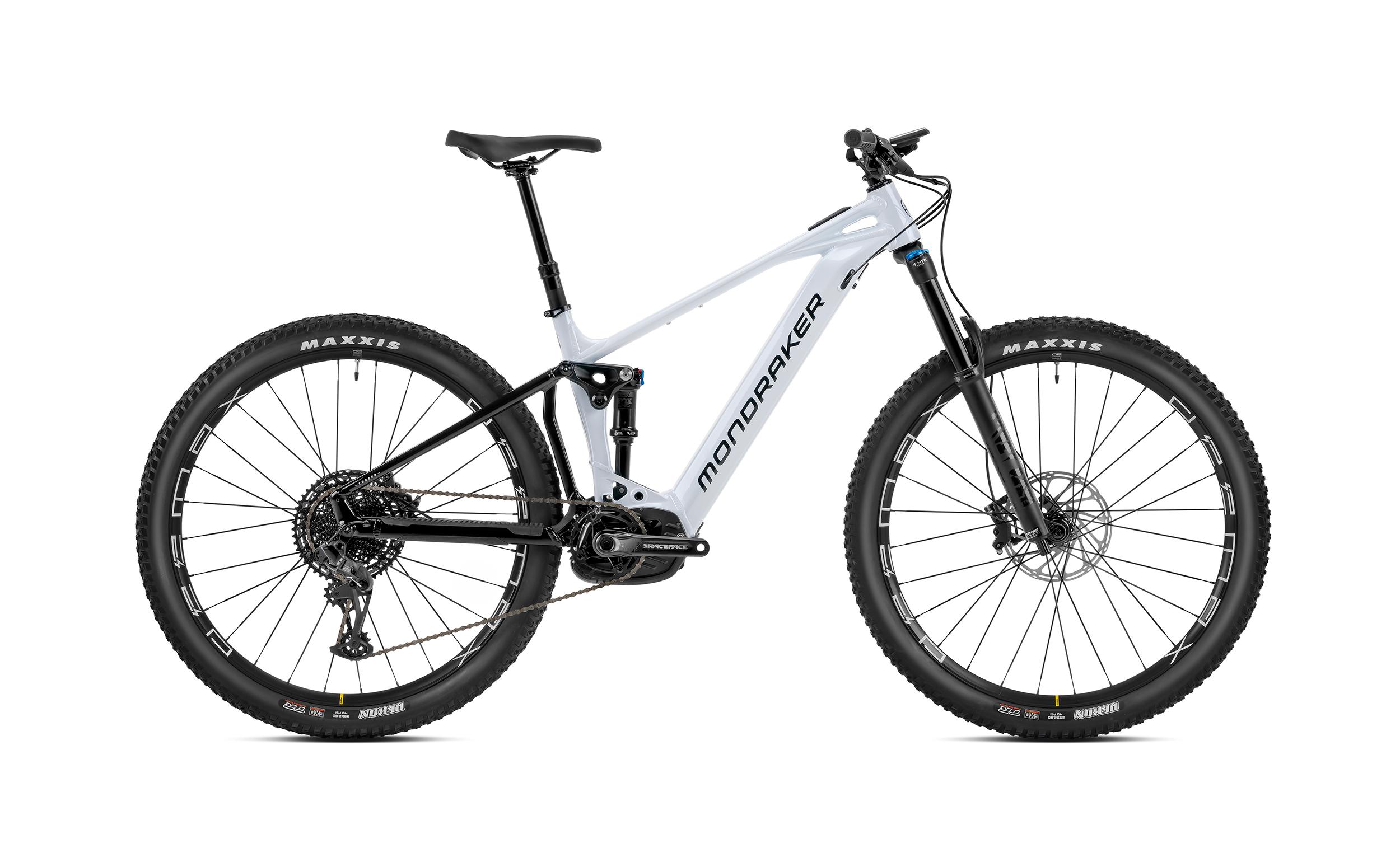

Lieferbar innerhalb 3-5 WerktageMondraker CHASER R WHITE BLACK
| Preis UVP € | 0,000 |
|---|---|
| Titel | Mondraker CHASER R WHITE BLACK |
| Laufradgröße | 29 Zoll |
| Modelljahr | 2023 |
| Hersteller | Mondraker |
| Motor | Bosch Performance Line CX Cruise (25Km/h) Smart System |
| Akku | Bosch Powertube 750Wh |
| Display | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
| Rahmen | Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 140mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrat |
| Gabel | Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload |
| Dämpfer | Fox Float DPS Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Dämpfereinstellungen | medium compression, medium rebound, air volume spacer 0.4 |
| Bremse | Sram DB8, 4-piston caliper, Centerline 200mm / 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Bremshebel | Sram DB8, tool-free reach adjust |
| Schalthebel | Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Schaltwerk | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Schaltauge | Mondraker M068 |
| Kurbelgarnitur | Race Face Aeffect ebike, 165mm |
| Kette | Sram SX Eagle, 12s, Powerlock |
| Kettenblätter | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Kassette | Sram PG-1210, 11-50T, 12s |
| Felgen | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Reifen vorn | Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Reifen hinten | Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Vorbau | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Lenker | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Griffe | Onoff Twin, 1lock-on, 135mm |
| Sattel | MDK ebike black |
| Sattelstütze | Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| Steuersatz | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Nabe vorn | Mavic, Boost 15x110mm, IS 6 bolts |
| Nabe hinten | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts |
| Pedale | - |
